Circular Vibrating Screen

Feed particle size≤400mm.

Processing capacity8-800m3/h.

Applicable materialAlloy powder, copper powder, ore, refractory, kaolin, lime, quartz sand, paint, etc..

Sell Hot: South Africa, Nigeria, Kenya,Mexico, Uzbekistan, Chile, Tanzania， Peru, Brunei, Brazil, Iran, Philippines, Malaysia, Vietnam, Pakistan, India, Russia, Venezuela, USA, etc.

Major benefits ! ! ! Buy Circular Vibrating Screen and
free delivery this machine related parts!

jacker@cfcmining.com Send Enquiry

Overview
Parameters
Send Enquiry

Circular vibrating screen, as its name implies, is a new type of vibrating screen with circular vibration, multi-layers and high efficiency. The circular vibrating screen produced by CFTC uses cylindrical eccentric shaft exciter and partial block to adjust the amplitude. The material sieve has long running line and many sieving specifications. It has the characteristics of reliable structure, strong exciting force, high sieving efficiency, low vibration noise, strong durability, convenient maintenance and safe use. The vibrating screen is widely used in product classification of mining, building materials, energy, chemical industry, transportation and other industries.

Circular Vibrating Screen Advantage:

Long service life, not easy to plug holes:
The circular vibrating screen adopts spring steel braided screen mesh or punching screen plate, which has long service life, strong vibration of the screen box and is not easy to plug the hole.

Screening efficiency is high:
The structure is novel, the technical parameters are advanced, the processing capacity is large, and the screening efficiency is high.

Easy maintenance:
Cylindrical eccentric shaft vibrator and eccentric block are used to adjust the amplitude of circular vibration screen, which is convenient for maintenance.

Efficient production:
Circular vibrating screen can ensure long-term and efficient production, which saves equipment operating costs and improves production capacity.

Parameters

Type	Layer number	Screen area (㎡)	input (mm)	capacity (m³/h)	speed (r/min)	power(kw)	Dip angle (°)	Screen surface Specifications (mm)	size(mm)
2YK1225	2	6	200	8-60	800-970	6P 5.5KW	20	1200×2500	2930×1860×870
3YK1225	3	9	200	10-70	800-970	6P 5.5KW	20	1200×2500	3070×1860×1210
2YK1230	2	7.2	200	12-78	800-970	6P 7.5LW	20	1200×3000	3430×1860×870
3YK1230	3	10.8	200	13-80	800-970	6P 7.5KW	20	1200×3000	3570×1860×1210
2YK1237	2	8.88	200	15-86	800-970	6P 7.5KW	20	1200×3700	4050×1860×870
3YK1237	3	13.32	200	16-90	800-970	6P 7.5KW	20	1200×3700	4270×1860×1210
2YK1535	2	10.5	200	20-125	800-970	6P 11KW	20	1500×3500	4120×2210×1230
3YK1535	3	15.75	200	21-125	800-970	6P 11KW	20	1500×3500	4360×2210×1610
2YK1545	2	13.5	200	22-150	800-970	6P 11KW	20	1500×4500	5120×2210×1230
3YK1545	3	20.25	200	22-150	800-970	6P 15KW	20	1500×4500	5360×2210×1610
4YK1545	4	27	200	22-155	800-970	6P 15KW	20	1500×4500	5930×2210×2060
2YK1548	2	14.4	200	22.5-162	800-970	6P 11KW	20	1500×4800	5420×2210×1230
3YK1548	3	21.6	200	22.5-162	800-970	6P 15KW	20	1500×4800	5660×2210×1610
4YK1548	4	28.8	200	22.5-162	800-970	6P 18.5KW	20	1500×4800	6230×2210×2060
2YK1848	2	17.28	200	25-206	750	6P 18.5KW	20	1800×4800	5420×2550×1420
3YK1848	3	25.92	200	32-276	750	6P 18.5KW	20	1800×4800	5660×2550×1780
4YK1848	4	34.56	200	32-285	750	6P 22KW	20	1800×4800	6290×2550×2160
2YK1854	2	19.44	200	32-312	800-970	6P 22KW	20	1800×5400	5960×2550×1420
3YK1854	3	29.16	200	32-312	800-970	6P 22KW	20	1800×5400	6260×2550×1780
4YK1854	4	38.88	200	32-336	800-970	6P 22KW	20	1800×5400	6830×2550×2160
2YK2160	2	25.2	200	50-475	970	6P 30KW	20	2100×6000	6720×2840×1530
3YK2160	3	37.8	200	50-475	970	6P 30KW	20	2100×6000	7030×2840×1910
4YK2160	4	50.4	200	50-497	970	6P 37KW	20	2100×6000	7300×2840×2380
2YK2460	2	28.8	200	65-550	970	6P 30KW	20	2400×6000	7020×3140×1530
3YK2460	3	43.2	200	70-620	970	6P 37KW	20	2400×6000	7300×3140×1910
4YK2460	4	57.6	200	80-680	970	6P 45KW	20	2400×6000	7600×3140×2380
2YK2870	2	39.2	200	120-680	750	8P 22×2KW	20	2800×7000	7600×4320×1620
3YK2870	3	58.8	200	180-720	750	8P 22×2KW	20	2800×7000	7800×4320×2120
2YK3072	2	43.2	200	200-700	750	8P 22×2KW	20	3000×7200	7800×4520×1750
3YK3072	3	64.8	200	230-800	750	8P 22×2KW	20	3000×7200	8000×4520×2300

Principle

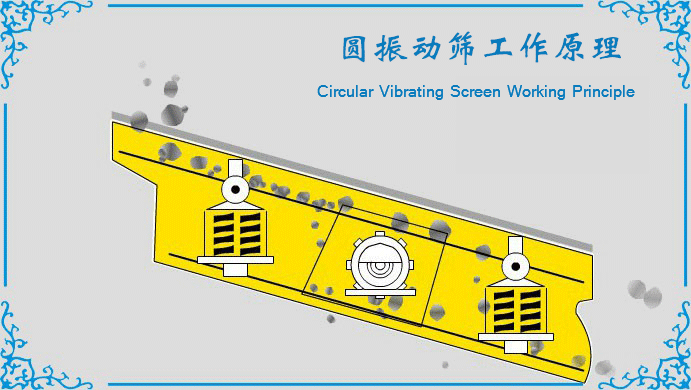

Working Principle of Circular Vibrating Screen Working Principle
The vibrating screen adopts the valve coupling with simple structure and easy manufacture and maintenance, which overcomes the defect that the universal coupling is easily damaged; the vibrator adopts the eccentric block structure and has simple structure; the feeding box can be matched to increase the effective screening area of the vibrating screen and prolong the service life of the screen screen at the feeding end; the transmission part increases the intermediate transition bearing seat and passes through the middle. The application of the ferry bearing seat effectively protects the motor and prolongs the service life of the motor. The motor is mounted on the left side of the screen frame or on the right side of the screen frame. This series of sifters are mounted. The adjustment of the inclination angle of the screen surface can be realized by changing the position height of the spring support seat.
